Appliance Control By Bluetooth

Appliance Control By " HC-05" Bluethooth

Objective

The Arduino board receives the user commands in the form of numbers from the smart phone through Bluetooth interface. These numbers are assigned to the home appliances and the appliances are toggled either ON or OFF on receiving the numeric command. The Arduino sketch looks for the numeric commands from the Bluetooth module and operates relays to switch appliances.

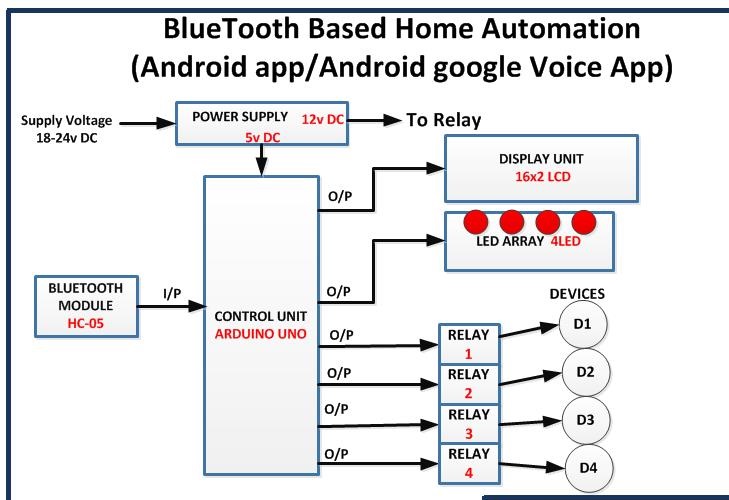

Circuit Diagram

Android Application  Link htt://goo.gl/7P1St1

Coding

String inputs;
#define relay1 2
#define relay2 3
#define relay3 4
#define relay4 5
#define relay5 6
#define relay6 7
#define relay7 8
#define relay8 9
void setup()
{
Serial.begin(9600);
pinMode(relay1, OUTPUT);
pinMode(relay2, OUTPUT);
pinMode(relay3, OUTPUT);
pinMode(relay4, OUTPUT);
pinMode(relay5, OUTPUT);
pinMode(relay6, OUTPUT);
pinMode(relay7, OUTPUT);
pinMode(relay8, OUTPUT);
digitalWrite(relay1, LOW);
digitalWrite(relay2, LOW);
digitalWrite(relay3, LOW);
digitalWrite(relay4, LOW);
digitalWrite(relay5, LOW);
digitalWrite(relay6, LOW);
digitalWrite(relay7, LOW);
digitalWrite(relay8, LOW);
}
void loop()
{
while(Serial.available())
{
delay(10);
char c = Serial.read();
if (c == '#'){
break; //Stop the loop once # is detected after a word
}
inputs += c; //Means inputs = inputs + c
}
if (inputs.length() >0)
{
Serial.println(inputs);

if(inputs == "A")
{
digitalWrite(relay1, LOW);
}
else if(inputs == "a")
{
digitalWrite(relay1, HIGH);
}
else if(inputs == "B")
{
digitalWrite(relay2, LOW);
}
else if(inputs == "b")
{
digitalWrite(relay2, HIGH);
}
else if(inputs == "C")
{
digitalWrite(relay3, LOW);
}
else if(inputs == "c")
{
digitalWrite(relay3, HIGH);
}
else if(inputs == "D")
{
digitalWrite(relay4, LOW);
}
else if(inputs == "d")
{
digitalWrite(relay4, HIGH);
}
else if(inputs == "E")
{
digitalWrite(relay5, LOW);
}
else if(inputs == "e")
{
digitalWrite(relay5, HIGH);
}
else if(inputs == "F")
{
digitalWrite(relay6, LOW);
}
else if(inputs == "f")
{
digitalWrite(relay6, HIGH);
}
else if(inputs == "G")
{
digitalWrite(relay7, LOW);
}
else if(inputs == "g")
{
digitalWrite(relay7, HIGH);
}
else if(inputs == "H")
{
digitalWrite(relay8, LOW);
}
else if(inputs == "h")
{
digitalWrite(relay8, HIGH);
}
inputs="";
}
}
